Piston Depositor

Twin Arm Dough Mixer with Dough Heating
  • Pneumatic Cake Depositor
  • Intelligent Cake Depositor
  • Intelligent Cake Depositor
    • Request a quote

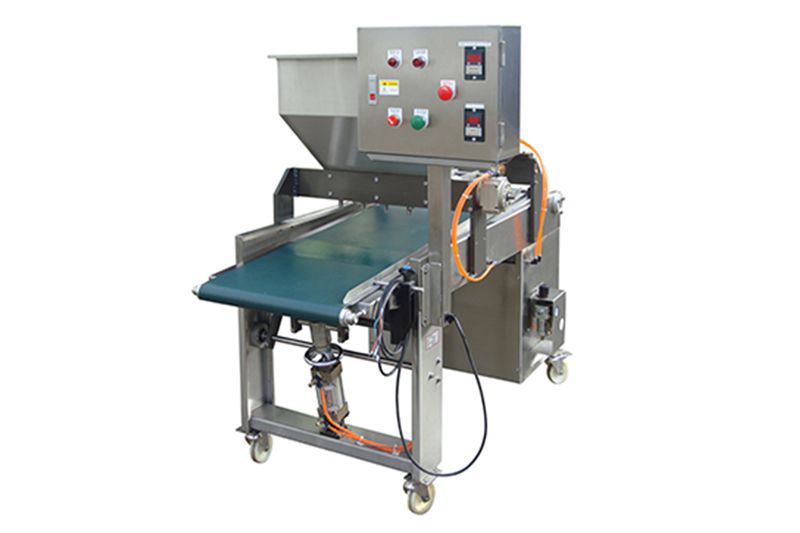

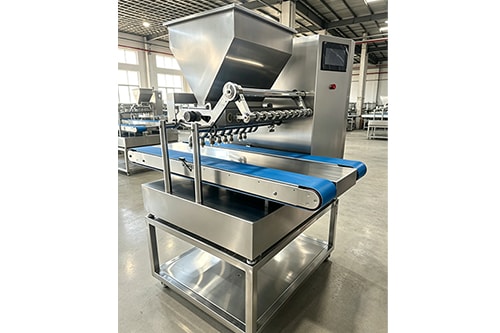

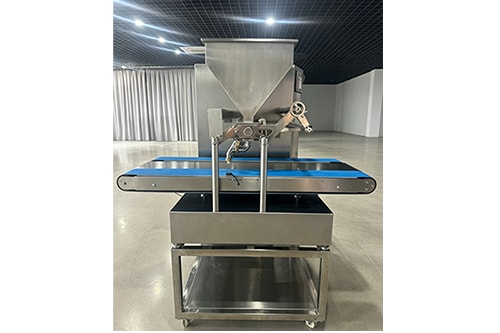

    The piston depositor integrates precise piston depositing system, intelligent servo control system and food-grade non-stick transfer piping. The piston depositor is suitable for precise portion filling with batter, cream, sauces, and other ingredients, enabling automated, standardized and continuous production of cake layers.
    The piston depositor provides solutions for industrial cake factories, central bakery facilities for chain operators, and standardized dessert production lines in terms of consistent fill weights, improved production efficiency, reduced ingredient waste, lower labor costs and scale production.

    Request a quote
    Cake Examples
    • Cake Examples
    • Cake Examples
    • Cake Examples
    • Cake Examples
    Specifications
    Capacity 25 rows / min, depending on product type
    Production Speed 2.4 sec/row
    Applicable Product Size Round Cake 4–12 in.
    Square Cake 4–12 in.
    Swiss Roll Max. 400 mm
    Cupcake 50–80 mm
    Weight Accuracy ±0.5–1 g

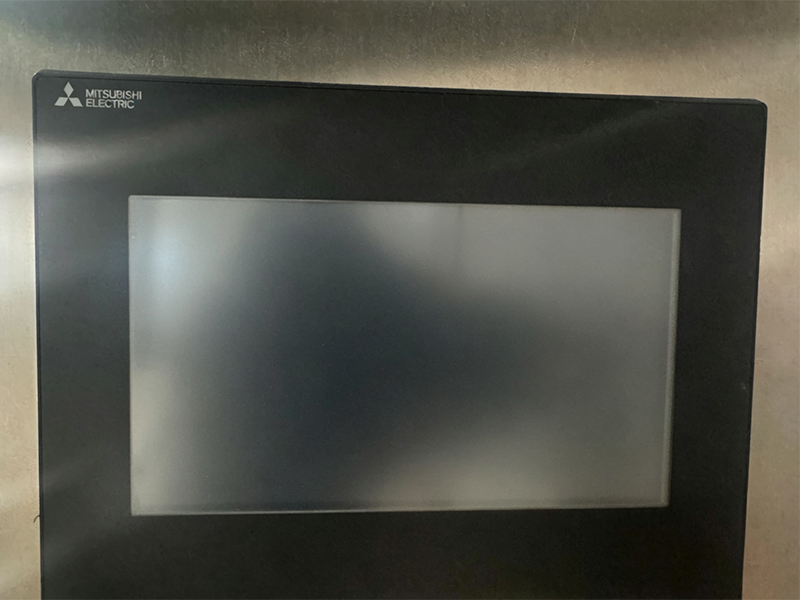

    Control System PLC + Touch Screen
    Hopper Capacity 30 L, customizable upon request

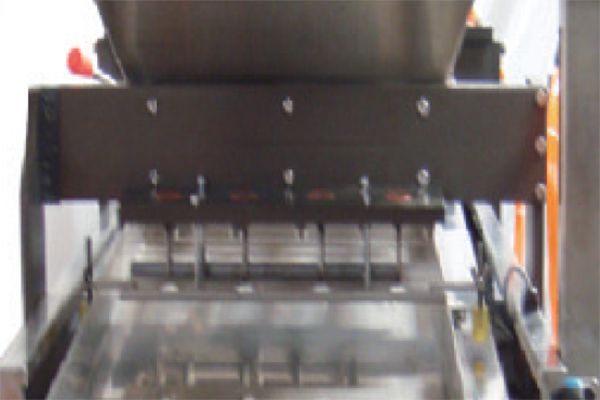

    Nozzle Configuration 8 depositing nozzles or full-tray depositing nozzle
    Changeover Time Full-tray depositing nozzle ≤5 min
    Compatible Materials Dairy cream, non-dairy cream, buttercream, mousse fillings, chocolate sauce, etc.
    Power Supply / Power 220 V / 2.65 kW
    Baking Tray Size 400×600 mm and 600×800mm
    Cleaning Method Quick-release cleaning
    Weight 450 kg
    Machine Dimensions (L×W×H) 1410 × 1070 × 1610 mm
    Features

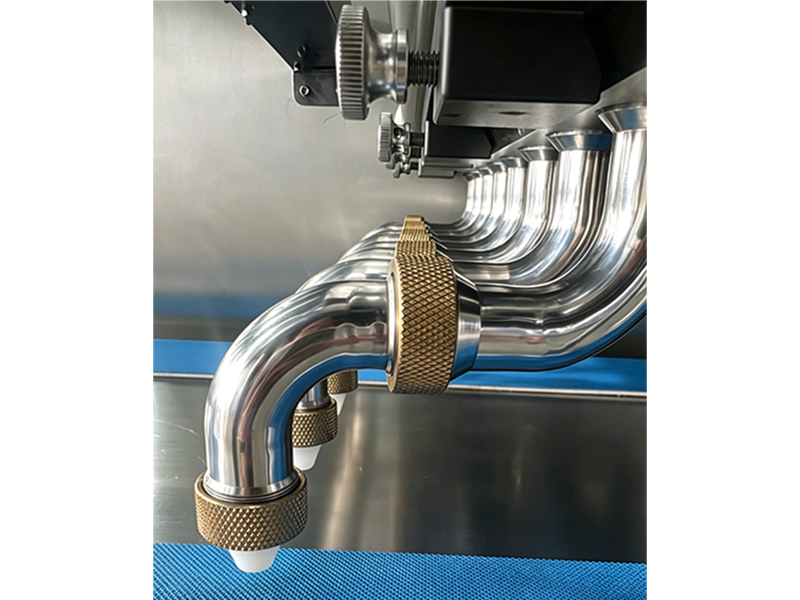

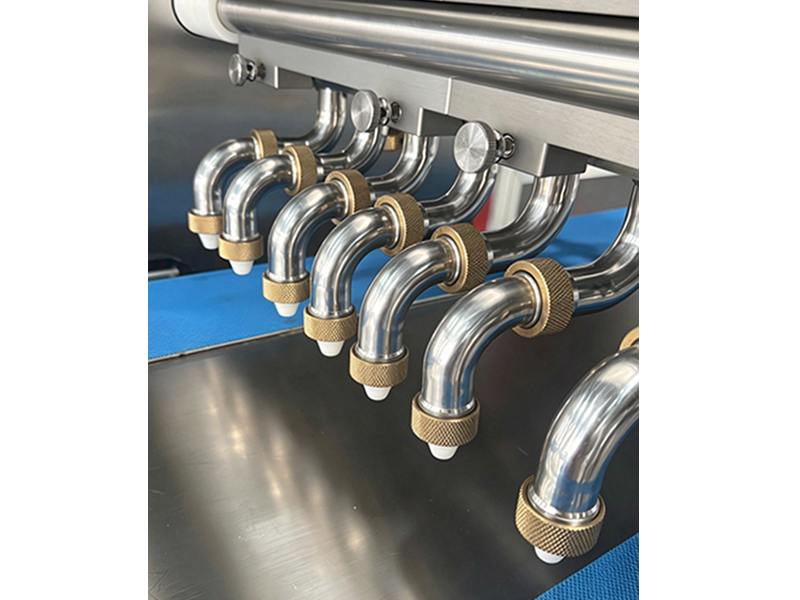

    • Nozzle angle and number of outlets are adjustable.
    • The piston depositor is suitable for a wide range of ingredients, including batters and fillings with small particulates.
    • One-touch parameter recall with an 8-nozzle setup, no frequent nozzle changeovers required for fast product switching.
    • Food-grade 304 stainless steel construction.

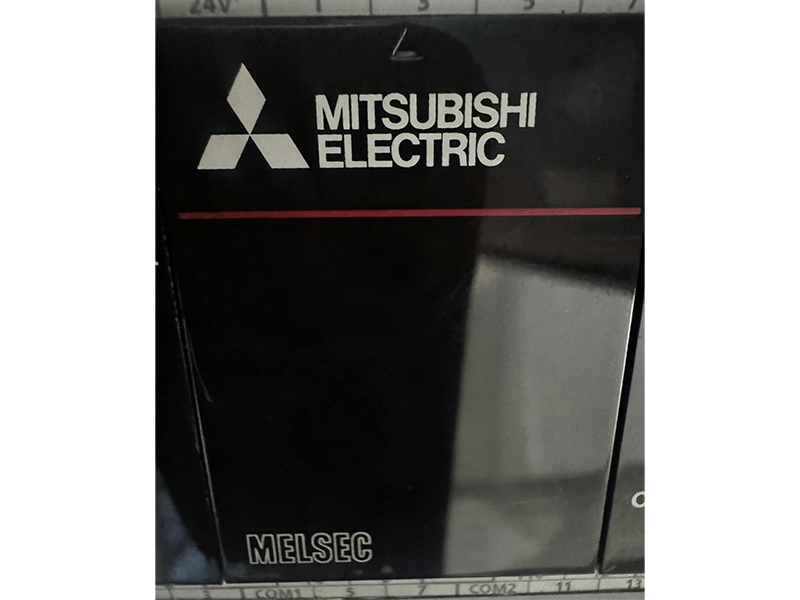

    • Mitsubishi servo control system with high-precision motion control technology for accurate and consistent depositing.
    • Cake Examples
    • Cake Examples
    • The piston depositor is equipped with a precision piston depositing system with weight accuracy of 0.5–1 g, making it suitable for precise portion control and stable depositing of batters, fillings, other similar ingredients and ingredients with small particulates.
    • Cake Examples
    • Cake Examples
