Robotic Cake Decorating Machine

Piston Depositor
Request a quote

The robotic cake decorating machine integrates robotic system, smart motion control and multi-purpose conveying system, which supports like animal cream, vegetable cream, blended cream, mousse and etc. standardized, smart process makes decorating easier, faster and more efficient.

The robotic cake decorating machine is suitable for large cake factories, central kitchens, bakery chains, frozen food manufacturers and OEM food companies.

Request a quote
  • Robotic Cake Decorating Machine
  • Robotic Cake Decorating Machine
  • Robotic Cake Decorating Machine
  • Robotic Cake Decorating Machine

Fast cream cake decorating

Strawberry box cake

Shell border piping

Rope border piping

Decorating speed (single robotic arm)
  • 16cm/6 inches: 500 cakes/h
  • 18cm/ 7 inches: 460 cakes /h
  • 21cm/ 8 inches: 400 cakes /h
  • 24cm/ 10 inches: 350 cakes /h
Features
  • The feeder is powered by Mitsubishi servo motor and uses precision motion control, and the robotic arm achieves a repeat positioning accuracy of ±0.02 mm.
  • Double-ingredient decorating is supported. The decorating machine can discharge two different ingredients simultaneously, which is suitable for elaborate designs like two-color borders, gradient-color decorations, multi-layered designs, etc.
  • Compared to traditional decorating machines that only support preset shapes, the decorating machines offer more variety and freedom in terms of shapes. You can set custom motion course and one-click shape change is supported.
Technical Specifications

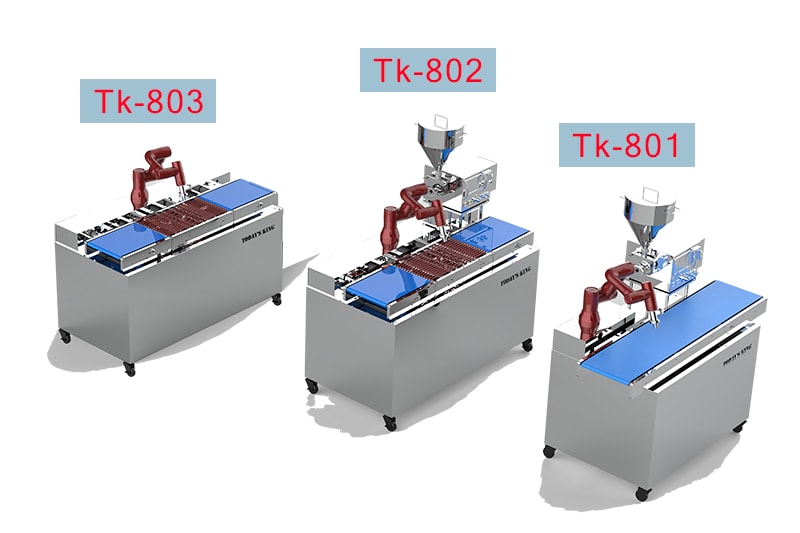

Model TK-801 TK-802 TK-803
Max. speed 500 cakes/h
Cake size range 4~18 inches
Max. load of robotic arm 3 kg
Weight of robotic arm (cables included) 12 kg
Working radius of robotic arm 626 mm
Repeat positioning accuracy of robotic arm ±0.02mm
Supported devices for programming PCs, tablets, phones and other mobile devices
Control method PLC + touch screen
Feed tank volume 10-30L, can be customized
Feeding method Integrated feeder Separated feeder
Number of nozzles One
Applicable ingredients animal cream, vegetable cream, blended cream, mousse and etc.
Power supply 220V/380V
Power 1.5kW
Changeover time ≤5 min
Cleaning method Quick removal for cleaning
Decoration types Lettering, piping, jam spreading, etc
Applicable cake shapes Square Round Square/round
